Why are clouds white?

Why is the sky blue? It’s a classic question – probably the classic question of the genre of explanatory popular physics. The famous short version of the answer is that Rayleigh scattering by air molecules affects short-waveength light more than long-wavelength light, and so blue light tends to get scattered in random directions to create the diffuse blue we know and love. But like almost every answer physics can give, the answer leads to more questions. Why does Rayleigh scattering scatter short-wavelength light more strongly? This is a fairly involved question to answer from first principles, and your average physics major won’t study the issue in depth until probably the junior year. The process of digging deeper and deeper into questions is how physics advances, and even thinking about old solved problems can lead to new insight.

Let’s see if we can find some insight into a similar question: why are clouds white?

640px-Cumulus_clouds_panorama

Clouds are made of water droplets. Pour yourself a glass of water. You’ll notice that the glass of water is not white. It is in fact perfectly clear. Well, glasses of water of big. Maybe tiny droplets are different. Dip a toothpick into the water and get the smallest droplet you can, and put it on a hard surface. You’ll be able to see the surface through the water with equal clarity. Even small drops of water are themselves clear.

303px-Raindrop_on_a_fern_frond

So if clouds are water, and water is clear, why aren’t clouds clear? They look to us a lot like they reflect light. Light that shines on them bounces off, and when we’re looking at the bottom of clouds on a stormy day we see that most of the sunlight doesn’t make it through the clouds because it has reflected off the tops of the clouds.

Here’s a short New York Times piece attempting to answer the question. The answer given there is that droplets do scatter light through a process called Mie scattering, which is essentially just refraction. The direction of the incoming light gets bent and changed just as in the photograph of the droplet above. Crucially, Mie scattering is more or less independent of wavelength. If droplets scatter all colors of light, “all colors” is basically white.

That’s true, but not complete. Why should this make clouds reflect white? How is it that randomly-directed scattering can preferentially send the light back in the direction it came from?

Let’s look at the process in a little more detail. When light hits a drop, it gets redirected through refraction and scattering – mostly in the forward direction, but after this redirected light hits more drops the randomness of the orientations of the light and the drops washes out all information about the original direction of the incoming light. At this point, the direction of the light is random and unrelated to the direction of the incoming light. It seems paradoxical that this would end up causing the light to leave the cloud in the same direction it came in. The answer is the random walk.

Imagine you’re walking down the sidewalk and you flip a coin. Heads you take a step forward, tails you take a step back. You keep up this process for many flips of a coin. Your position over a thousand steps might look like this:

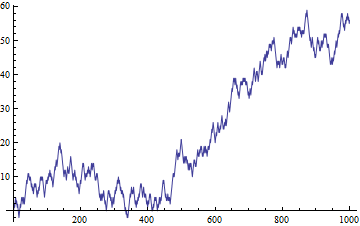

random1

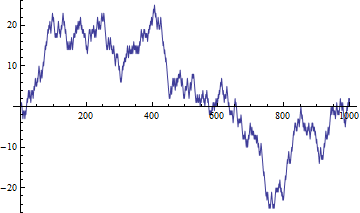

Or like this[1]:random2

The point of an unbiased random walk is that you’re equally likely to go one way or another. Should you end up ten steps forward of where you started (call it y = 10), you’re equally likely to end up at position y = 0 and y = 20 at a given number of steps in the future. If the end of the sidewalk is at y = 10,000, and you’re sitting at y = 10, it is much, much more probable for you to end up back at y = 0 before you wobble your way to y = 10,000. For instance, here’s a 100,000 step random walk:

100kIt returns to 0 several times in the first 20,000 steps, and then by the 100,000th step has only managed to wander off to around y = 500. Should we keep stepping, we’re still much more likely to wobble back down the 500 steps to 0 than we are to wander the 9,500 steps up to y = 10,000.

And that’s why clouds are white. Each drop, or at least each several drops, are essentially a step of a random walk for the incoming light waves[2]. If the cloud is very large compared to the size of the step (which is on the order of a few times the distance between drops), then the light is much more likely to wander back out to the same side of the cloud it came in than it is to wander all the way to the other side.

This concept generalizes to all kinds of light scattering objects. White sand is mostly clear silica particles, but this same scattering process bounces the light back diffusely. In an astrophysical context, reflection nebula work in similar ways:

reflection

Sometimes there’s a lot of insight to be gained by asking kid-style questions, even if the path to the answer is kind of random.

[1] You’re not alone if you think these look like stock market charts. There’s a pretty large body of academic literature that models financial markets as random walks with varying levels of bias.

[2] There’s a temptation to talk in terms of photons bouncing around. This temptation ought to be resisted. The process of scattering is entirely a classical wave phenomenon.

Comments

  1. #1 bobh
    Wash DC
    April 1, 2013

    But a cloud is 3 dimensional and in 3 dimensions the probability is only .34 that the random walker will return to the origin in an infinite number of steps. As opposed to your example (1-D) with a P=1.0 of return to origin.

    • #2 Matt Springer
      April 1, 2013

      This is a good point, though I don’t think it affects the result. We’re not worried about returning to the origin specifically, we’re interested in returning to the surface of the cloud. So the process we’re concerned about is more like a 1D random walk up and down an axis normal to the surface of the cloud. Should the light emerge with some lateral displacement, that’s ok.

  2. #3 bobh
    April 1, 2013

    Agree. Another way to look at it is light is entering cloud from multiple directions and most of it comes back out

  3. #4 rhodium
    April 1, 2013

    So if Rayleigh scattering is wavelength dependent, why isn’t the sky violet? (My favorite class question so far this year).

    • #5 Matt Springer
      April 1, 2013

      I’ve heard this question posed before – when I first heard it my guess was that there’s just less violet light emitted by the sun in the first place. But that turns out not to be it. I won’t spoil it for the readers who might want to think about it some more. (And it’ll make an interesting post too.)

  4. #6 Keith M Ellis
    Kansas City, MO
    April 1, 2013

    Huh. I was just reading about Mie scattering and Tyndall scattering a few days ago. Note that while you contrast Rayleigh scattering from Mie scattering with regard to size relative to wavelength and that the latter scatters visible light equally, Tyndall scattering is more like the latter but scatters unequally giving rise to, for example, the color of blue eyes (which is the context within which I encountered this).

  5. #7 Mark P
    April 3, 2013

    As you note, the scattering is not isotropic, but I think you will find that there is a reasonably strong backward scattering component as well.

  6. #8 web
    http://electriciansnewcastle.net/
    April 16, 2013

    Precisely how would you manage to create a real fantastic audience regarding commenters to your website?
