The A, B, Z’s of DNA

Today (4/25) is national DNA day.  Digital World Biology™ is celebrating by sharing some of our favorite structures of DNA. We created these photos with Molecule World™ a new iPad app for viewing molecular structures.

As we are taught in school, the double stranded DNA molecule is a right-handed helix as determined by Watson and Crick using Franklin’s x-ray diffraction images [1]. This B-form of DNA has approximately 10 nucleotides per turn of the helix and is the most common form of DNA found in nature.

B-DNA

Classic structure with the elements colored.

B-DNA

Classic structure with the bases colored.

B-DNA

Classic structure with the strands colored.

However, we’ve heard it said that the first crystal structure of DNA was not right-handed (pers. communication S. Elgin, Washington University). Instead, the high salt and GC base-pairs, used to form the DNA crystals caused the helix to twist in a left-handed way, creating a structure called  Z-DNA. Z-DNA occurs in nature, but is most frequently used by marketing departments to [incorrectly] create company logos.

Z-DNA

Z-DNA with the elements colored.

Z-DNA

Z-DNA with the bases colored.

Z-DNA

Z-DNA with the stands colored.

In addition to B- and Z-DNA, DNA can exist in another form known as A-DNA. A-DNA occurs when DNA is dehydrated, but also in DNA/RNA hybrids and double stranded RNA.

A-DNA

A-DNA with the elements colored.

A-DNA

A-DNA with the bases colored.

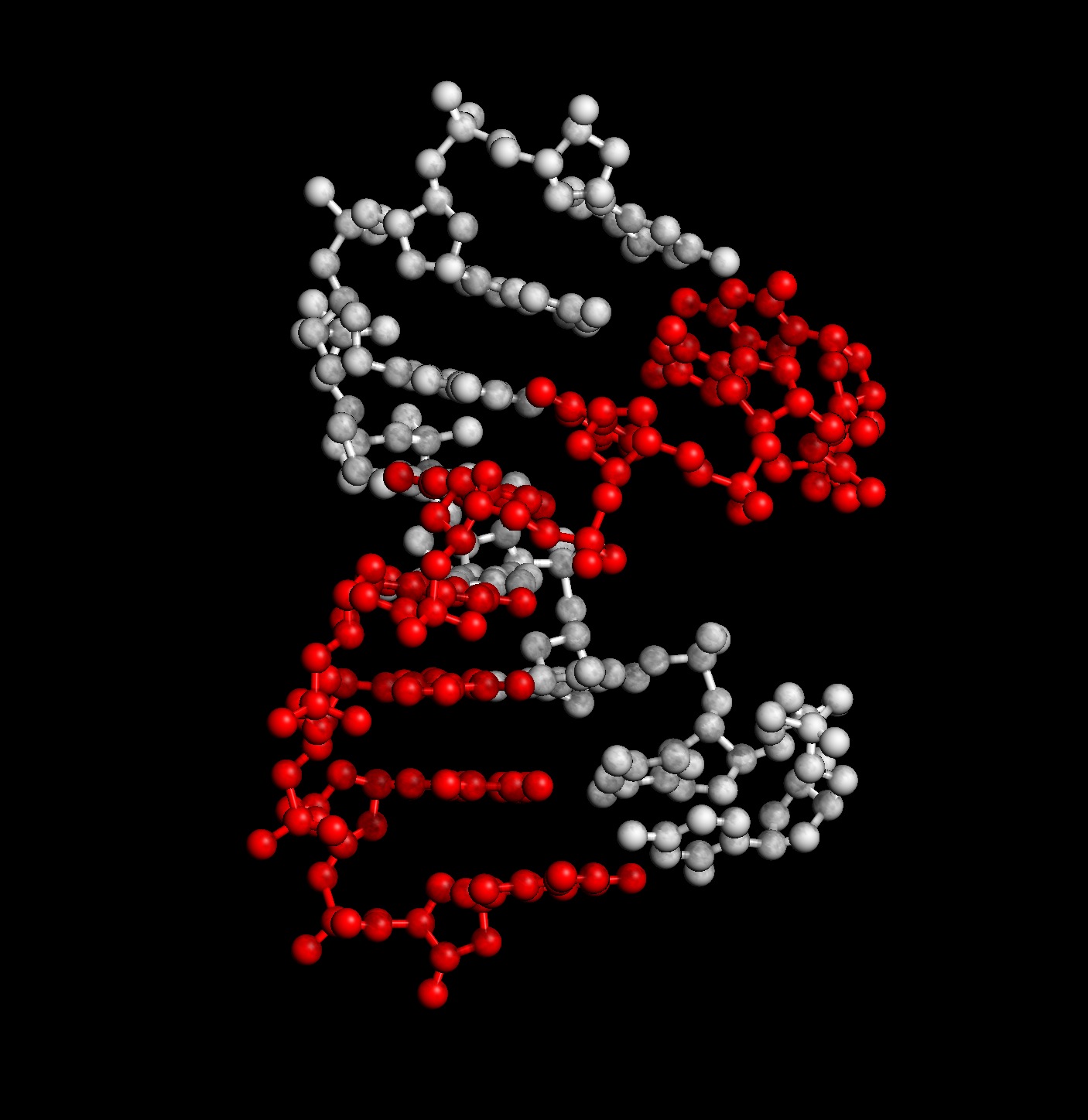

A-DNA with the strands colored.

A-DNA with the strands colored.

Here’s another look at the same molecules, this time head on with the structures rendered in tubes and the bases colored.

B-DNA

B-DNA “on end,” showing the double helix.

Z-DNA

Z-DNA “on end,” showing the double helix.

A-DNA

A-DNA “on end,” showing the double helix.

References

Double Helix – Watson, J. D., & Crick, F. H. (1953). Molecular structure of nucleic acids; a structure for deoxyribose nucleic acid. Nature, 171(4356), 737-8.

B-DNA Structure (PDB:1BNA) – Drew, H., Wing, R., Takano, T., Broka, C., Tanaka, S., Itakura, K., & Dickerson, R. (1981). Structure of a B-DNA dodecamer: conformation and dynamics. Proceedings of the National Academy of Sciences, 78 (4), 2179-2183 DOI: 10.1073/pnas.78.4.2179

First Z-DNA Crystal – Wang, A., Quigley, G., Kolpak, F., Crawford, J., van Boom, J., van der Marel, G., & Rich, A. (1979). Molecular structure of a left-handed double helical DNA fragment at atomic resolution Nature, 282 (5740), 680-686 DOI: 10.1038/282680a0

Z-DNA Structure (PDB:1D48) – Egli, M., Williams, L., Gao, Q., & Rich, A. (1991). Structure of the pure-spermine form of Z-DNA (magnesium free) at 1-.ANG. resolution Biochemistry, 30 (48), 11388-11402 DOI: 10.1021/bi00112a005

A-DNA Structure (PDB:371D) – Fernandez, L., Subirana, J., Verdaguer, N., Pyshnyi, D., Campos, L., & Malinina, L. (1997). Structural Variability of A-DNA in Crystals of the Octamer d(pCpCpCpGpCpGpGpG) Journal of Biomolecular Structure and Dynamics, 15 (1), 151-163 DOI: 10.1080/07391102.1997.10508954
