Messier Monday: A Secretly Active Spiral Galaxy, M77

"The battle, sir, is not to the strong alone; it is to the vigilant, the active, the brave." -Patrick Henry

It's not a good idea to showcase a galaxy for you every Messier Monday, considering that even a crescent Moon can render most of them completely unobservable. Now that the autumnal equinox has passed, however, a very special spiral will be visible after sunset for the next six months or so in a relatively nondescript part of the night sky. Out of the 110 deep-sky objects that comprise the Messier catalogue, a full forty of them are galaxies, although today's object wasn't recognized as one for quite some time after its discovery.

Image credit and compilation: Rolando Ligustri, via http://www.itelescope.net/. Image credit and compilation: Rolando Ligustri, via http://www.itelescope.net/.

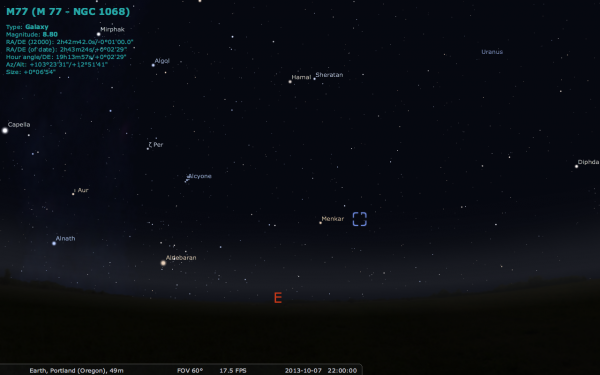

In the east after sunset tonight, as the sky darkens and the crescent Moon heads down in the west, a few bright stars will begin to rise. Just to the north of due east, the night sky's 6th brightest star, Capella, will rise first, followed by the red giant Aldebaran, the 14th brightest, which should have the familiar Pleiades topping it over the horizon. But if you head a little farther south of those more familiar sights, you'll find a relatively sparse star-field with one somewhat prominent star, Menkar, which barely cracks the top-100, but can lead you to today's object: Messier 77.

Image credit: me, using the free software Stellarium, via http://stellarium.org/. Image credit: me, using the free software Stellarium, via http://stellarium.org/.

Menkar is by far the most notable star in its section of the sky, outshining all the others around it by at least a full magnitude. There are two other naked-eye stars that stand out near Menkar just to the south: γ Ceti (the brighter one) and δ Ceti (the slightly dimmer one). If you can locate δ Ceti in a pair of binoculars or a small telescope, that will help you find your way to Messier 77.

Image credit: me, using the free software Stellarium, via http://stellarium.org/. Image credit: me, using the free software Stellarium, via http://stellarium.org/.

Just about two degrees closer to the horizon than the blue, fourth-magnitude δ Ceti is a just-visible-to-the-naked-eye star, 84 Ceti, and if you make a (slightly) shortened equilateral triangle in your mind, you'll know where to look for Messier 77.

Image credit: me, using the free software Stellarium, via http://stellarium.org/. Image credit: me, using the free software Stellarium, via http://stellarium.org/.

Although it's got a very low surface brightness, like many galaxies, either a large telescope or a time-lapse exposure should begin to bring out the details of this deep-sky wonder. Charles Messier and his assistant, Pierre Méchain, had neither, of course, and described it as:

Cluster of small stars, which contains some nebulosity, in Cetus & on the parallel of the star Delta... Méchain saw this cluster on October 29, 1780 in the form of a nebula.

This was how open star clusters were typically described; it wasn't until the middle of the 19th Century that the spiral structure of this object was identified, and it was classified officially (and correctly) as a galaxy.

Image credit: NASA, ESA, Digitized Sky Survey 2. Image credit: NASA, ESA, Digitized Sky Survey 2.

You can see that there are many other galaxies in this part of the sky, including the edge-on spiral with a large central bulge, NGC 1055. Messier 77 is unique in this region, being the largest of the nearby galaxies, appearing to be completely face-on, and also the brightest.

Image credit: Bernier François, of http://astronomie-astrophotographie.fr/ Image credit: Astroghost-François, of http://astronomie-astrophotographie.fr/.

It's also got some of the most interesting detail you'll find in any spiral galaxy, when you take the time to bring out the various features that are lurking within.

Image credit: Adam Block / Mt. Lemmon Skycenter / University of Arizona, via http://www.caelumobservatory.com/. Image credit: Adam Block / Mt. Lemmon Skycenter / University of Arizona, via http://www.caelumobservatory.com/.

The prominent "double-ringed" features may remind you of another Messier object we recently looked at (M94), and with good reason; there's an intense gravitational interaction happening with this galaxy that created these features!

M77 is not only strikingly beautiful, it's also an incredibly physically interesting system, and while there are clues to this in the extended spiral arms and the huge, dusty gaps in the light-emitting portion of the galaxy, there's an even bigger clue that was revealed when you applied spectroscopy to this object.

Image credit: HST / FOC, Merlin, and VLBA; NASA and ESA. Image credit: HST / FOC, Merlin, and VLBA; NASA and ESA.

While most dusty galaxies exhibit absorption lines when there's neutral gas-and-dust, the center of this galaxy has intense emission lines coming from its core! In addition to that, we later discovered intense X-ray emissions coming from that core as well, along with bi-directional radio jets shooting out of the galactic center. It was quickly established that even though this is a star-forming galaxy, the X-rays have nothing to do with the starburst itself, but are coming exclusively from the very center.

Images credit: X-ray (NASA/CXC/ MIT/C.Canizares, D.Evans et al), Optical (NASA/STScI), Radio (NSF/ NRAO/VLA). Images credit: X-ray (NASA/CXC/ MIT/C.Canizares, D.Evans et al), Optical (NASA/STScI), Radio (NSF/ NRAO/VLA).

This is now the archetype of a class of galaxies known as Seyfert Galaxies, as the astronomer Carl Seyfert first identified this new class of galaxies -- beginning with M77 -- as having active galactic nuclei (AGNs), which are also known as Seyfert galaxies.

We know now that Type 1 and Type 2 Seyferts, AGNs, QSOs, Quasars and Blazars are all the same phenomenon: a supermassive black hole at the center of galaxies dining on infalling matter. Messier 77 is the first galaxy to be identified as such, and although this phenomenon is ubiquitous throughout the Universe, this one galaxy has a spectacular story all its own.

Image credit: Paul and Liz Downing of http://paulandliz.org/. Image credit: Paul and Liz Downing of http://paulandliz.org/.

While the core contains a supermassive black hole some 15 million times the mass of our Sun, and an intense region some 12 light-years in diameter of intense star formation, the full galaxy itself is one of the largest in the Messier catalogue. At a distance of 47 million light years, it spans a whopping 170,000 light-years in diameter.

And while you might think it's a face-on galaxy, it's actually inclined to us at some 40 degrees, which just goes to show how deceiving a galaxy's shape can be to the untrained eye. Finally, it's speeding away from us at more than 1,100 km/s, caught up in the expansion of the Universe.

Image credit: © 2006 - 2012 by Siegfried Kohlert, via http://www.astroimages.de/. Image credit: © 2006 - 2012 by Siegfried Kohlert, via http://www.astroimages.de/.

The spiral arms stretch out farther than the vast majority of other spirals, and it's the brightest Seyfert galaxy in the entire night sky. It's also gorgeous, as Ryan Hannahoe brings out in the image below.

Image credit: Ryan Hannahoe of http://ryanhannahoe.nmskies.com/. Image credit: Ryan Hannahoe of http://ryanhannahoe.nmskies.com/.

The best image came out just earlier this year courtesy of the Hubble Space Telescope. If you want to know what NASA has done for us lately -- which you might be curious about in the midst of the US government's current woes -- you might want to take a good look at this.



Image credit: NASA, ESA & A. van der Hoeven. Image credit: NASA, ESA & A. van der Hoeven.

If you'd like to examine a slice-through-the-core of this galaxy in visible light, complete with dust lanes, star-forming regions, and the galactic core, I've taken a crop of the full-resolution version of this picture for you, and don't be afraid to go to the Space Telescope's site itself for a peek at the videos they've created!

Image credit: NASA, ESA & A. van der Hoeven. Image credit: NASA, ESA & A. van der Hoeven.

And that will take us to the end of Messier Monday! Including today’s entry, we’ve taken a look at the following Messier objects:

Come back next week, where another one of the Universe's deep-sky wonders awaits you, only here on Messier Monday!
